LIZARD Probes
Standard range of LIZARD probe types designed for industrial applications and common weld geometry. Available as topside or subsea variants with multi-frequency operation.
"Provides a far superior view of any defects compared to normal non-destructive testing"— Project Manager, Rail Overhaul Project USA
Advanced Technology
Non-contacting technology with lift-off capability and multi-frequency operation for comprehensive inspection
Non-Contacting Technology
Unique lift-off capability allows inspection through coatings and provides positional feedback for complex robotic deployment methods.
Multi-Frequency Operation
Same sensor type operates at different frequency ranges enabling inspection of both ferrous and non-ferrous applications.
Dual Channel Arrays
Absolute (Bx) and Current Perturbation (Bz) per channel arranged in pairs for comprehensive defect data from single sweep.
Rugged Construction
Hard anodised aluminium housing with super hard encapsulate for sensor protection in demanding industrial environments.
Coating Penetration
Inspection through non-conductive coatings (paint, epoxy) and conductive coatings (flame sprayed aluminium, zinc).
No Encoder Required
Unique defect measurement process eliminates need for encoders, enabling inspection of structures with grime, grease, or residual coatings.
LIZARD Probe Range
Complete range of probes designed for industrial applications and common weld geometries

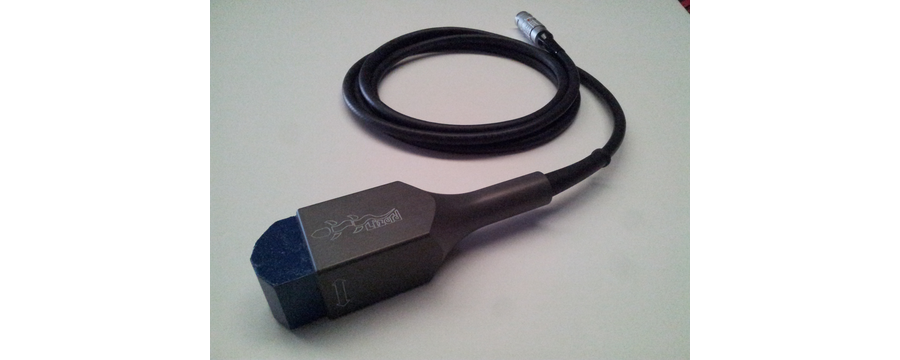

LP100T
Versatile eddy current probe for efficient inspection of medium to large ferritic welds. Covers HAZ, weld toe, and crown in a single pass, reducing inspection time.
The LP100 is a versatile eddy current probe for efficient inspection of medium to large welds in ferritic materials. Its uniquely shaped probe covers the HAZ, weld toe, and crown in a single pass, significantly reducing inspection time versus pencil probes. Ideal for plate and tubular welds, it is proven in demanding environments, including oil rigs and ocean vessels.
LP600T
High sensitivity probe for detailed analysis. Enhanced performance for critical inspection applications.

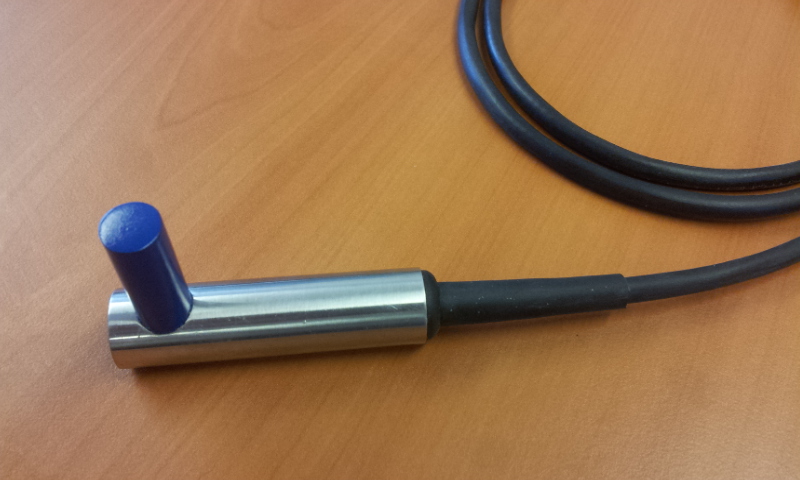

LP610T
Pencil probe for restricted access inspection and detailed defect examination. Accurate depth measurement in magnetic materials across almost any geometry.
The LP610 is a pencil probe designed for restricted access inspection and detailed defect examination. Suitable for almost any geometry, including welds, it provides accurate defect depth measurement in magnetic materials. Often used alongside large array probes for follow-up inspection, each LP610 is supplied with a 2.5 m cable and a compact in-line electronic housing positioned 1.5 m from the probe head.

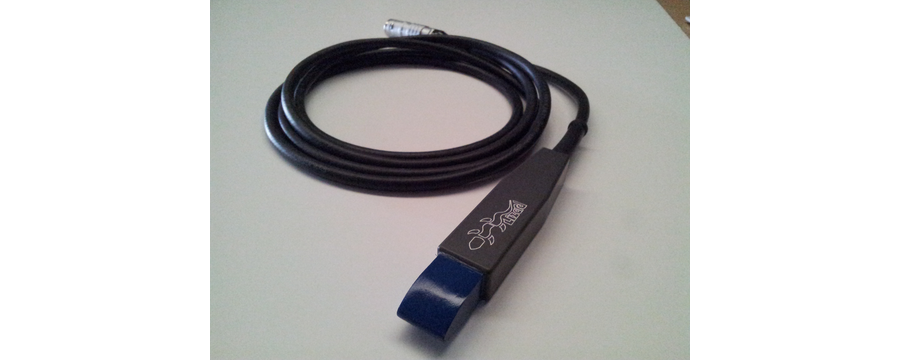

LP801T
Weld probe for inspection of small to medium ferritic welds, including tubular welds and T-nodes. Optimized for tight-access applications and crane boom operation.
The LP801 is a weld probe for general-purpose inspection of small to medium ferritic welds, including tubular welds, T-nodes, and weld toes. Designed for tight-access applications such as crane boom operation, its probe face is optimized for tubular and constrained geometries.

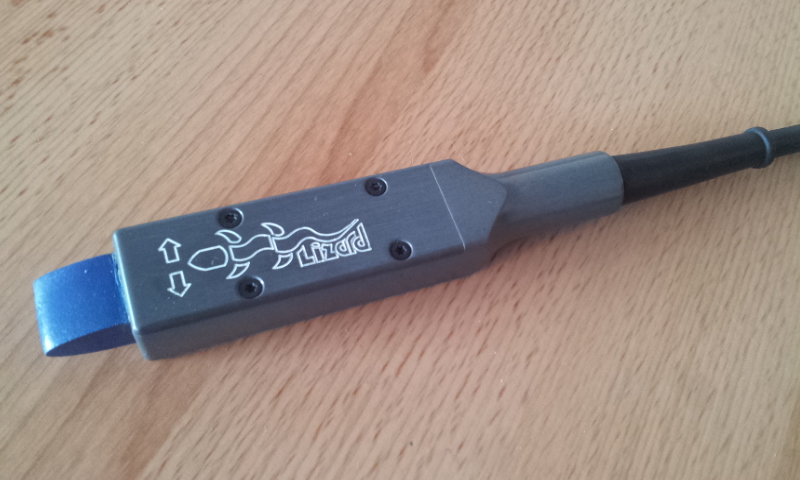

LP833T
Weld probe for inspection of small to medium ferritic welds, including tubular welds and T-nodes. Ideal for tight geometries, crane boom operation, and restricted-access inspections.
The LP833 is a weld probe for general-purpose inspection of small to medium ferritic welds, including tubular welds, T-nodes, and weld toes. Optimized for tight geometries and crane boom operation, it is ideal for restricted-access inspections.
LP184T
Reliable probe for multi-purpose use. Dependable performance across diverse inspection scenarios.
Technical Advantages & Applications
Advanced Data Acquisition
- Single sweep data sets encompassing defect location, depth, and length
- Lift-off/probe coupling information and Classic impedance data
- Both Absolute (Bx) and Current Perturbation (Bz) components
- User-friendly display with software-adjustable parameters
- Phase positioning for defect display optimization
Operational Benefits
- Available as topside or subsea variants
- Probe handling minimization through lift-off adjustments
- Inspection through paint, epoxy, and metallic coatings
- Suitable for structures with grime, grease, or residual coatings
- Compatible with robotic deployment systems
"The LIZARD probe technology allows users to obtain comprehensive data sets from a single sweep that encompasses defect location, depth and length information, all through a user-friendly display with powerful software adjustment capabilities."— Senior NDT Engineer, Industrial Inspection Services
Ready to Explore LIZARD Probes?
Contact us for probe specifications, application guidance, or custom probe configuration requirements.
