LIZARD Dive
Dedicated workhorse of electromagnetic inspection for the toughest subsea environments, whether shallow or deep water. Designed for dive personnel and robotic manipulation campaigns.
"I would have no hesitation in recommending Lizard Technology"— General Manager, Certifying Authority
Field Gradient Imaging
Powered by LIZARD FGI technology with Dynamic Field Coupling Feedback for real-time probe deployment corrections
ROV & Diver Operation
Designed for dive personnel and robotically manipulated inspection campaigns where accuracy and repeatability are paramount.
Dynamic Field Coupling
Real-time feedback enables corrections to probe deployment and travel, with all data archived for post-inspection analysis.
Marine Growth Penetration
Inspect through residual marine growth and surface coatings, eliminating the need for time-consuming cleaning operations.
Multi-Faceted Arrays
LP180SR and LP170SR arrays offer 180 and 170 degrees inspection capability, providing comprehensive scan coverage.

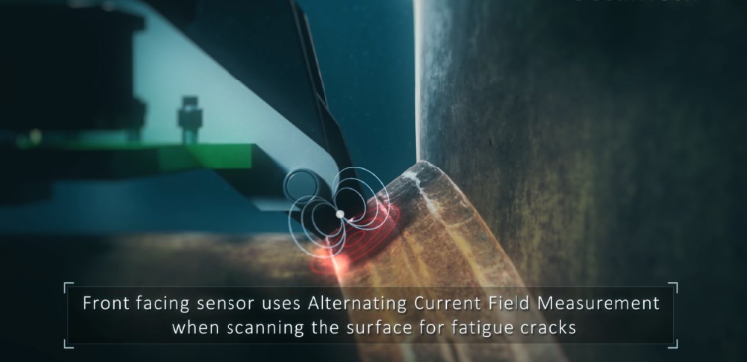

ACFM Technology
Alternating Current Field Measurement for defect sizing independent of operator skill or surface preparation requirements.
Electromagnetic Toolbox
Complete electromagnetic technology suite including FGI, EMA, and ACFM capabilities in a single rugged subsea package.

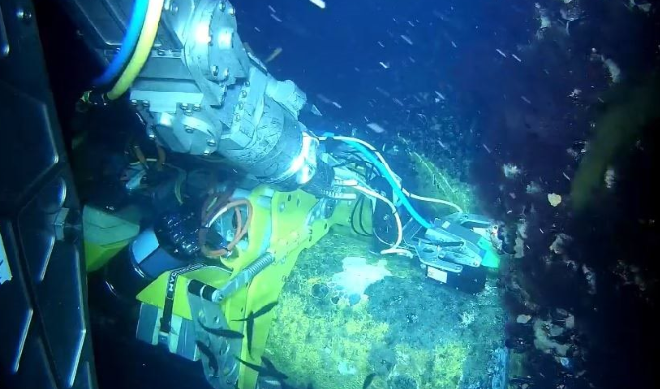

LP180SR Multi-Facetted Array for Diver and Robotically Deployed and Manipulated Solutions
Multi-Faceted Array Technology
The LPSR range of multi-faceted arrays enables comprehensive inspection coverage for complex tubular node geometries, deployed by both divers and robotic manipulation systems.
Key Capability: The LPSR range offers up to 10mm spacing from the conductive test piece, enabling inspection through marine growth and non-conductive coatings without the need for time-consuming surface preparation.
Custom Subsea Solutions
LIZARD NDE provides bespoke and modified systems, arrays, and software features tailored to your specific inspection requirements. Our engineering team works closely with clients to develop custom solutions for unique subsea challenges.
- Custom array configurations for specific geometry requirements
- Integration with third-party robotic platforms and crawlers
- Modified software features for specialized data analysis
- Application-specific probe designs and housings
LP184SR Flat Profile Array with Magnetic Crawler Integration
Subsea Equipment Range
Complete range of subsea probes and electronic packages for demanding underwater inspection applications
Electronic Packages
Lizard Dive DDPU
Electronic package to enable subsea inspection at depth with full electromagnetic toolbox capability.

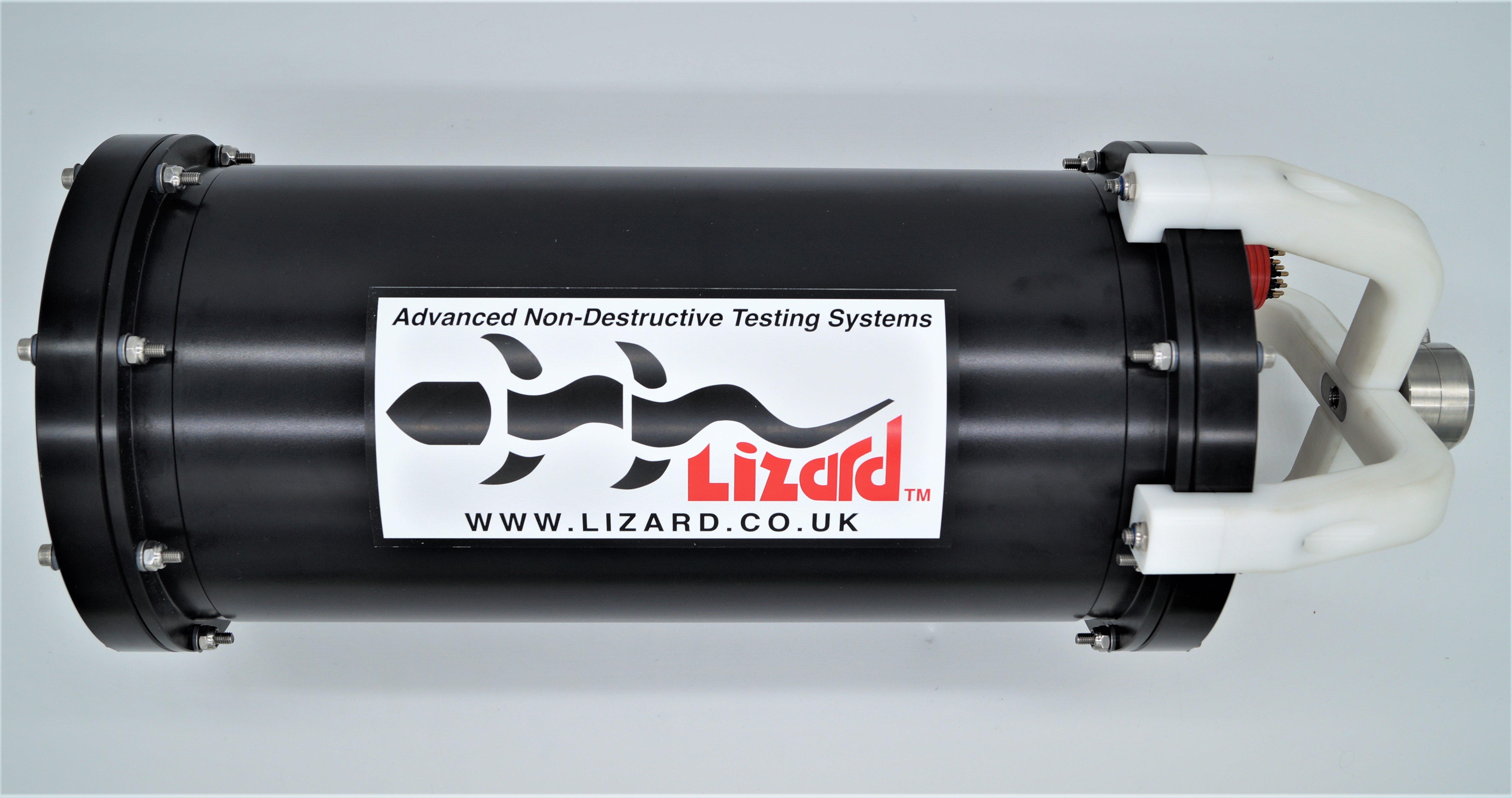

DDPU DW
Electronic package to enable subsea inspection for deep water ROV deployment operations.
Subsea Probes

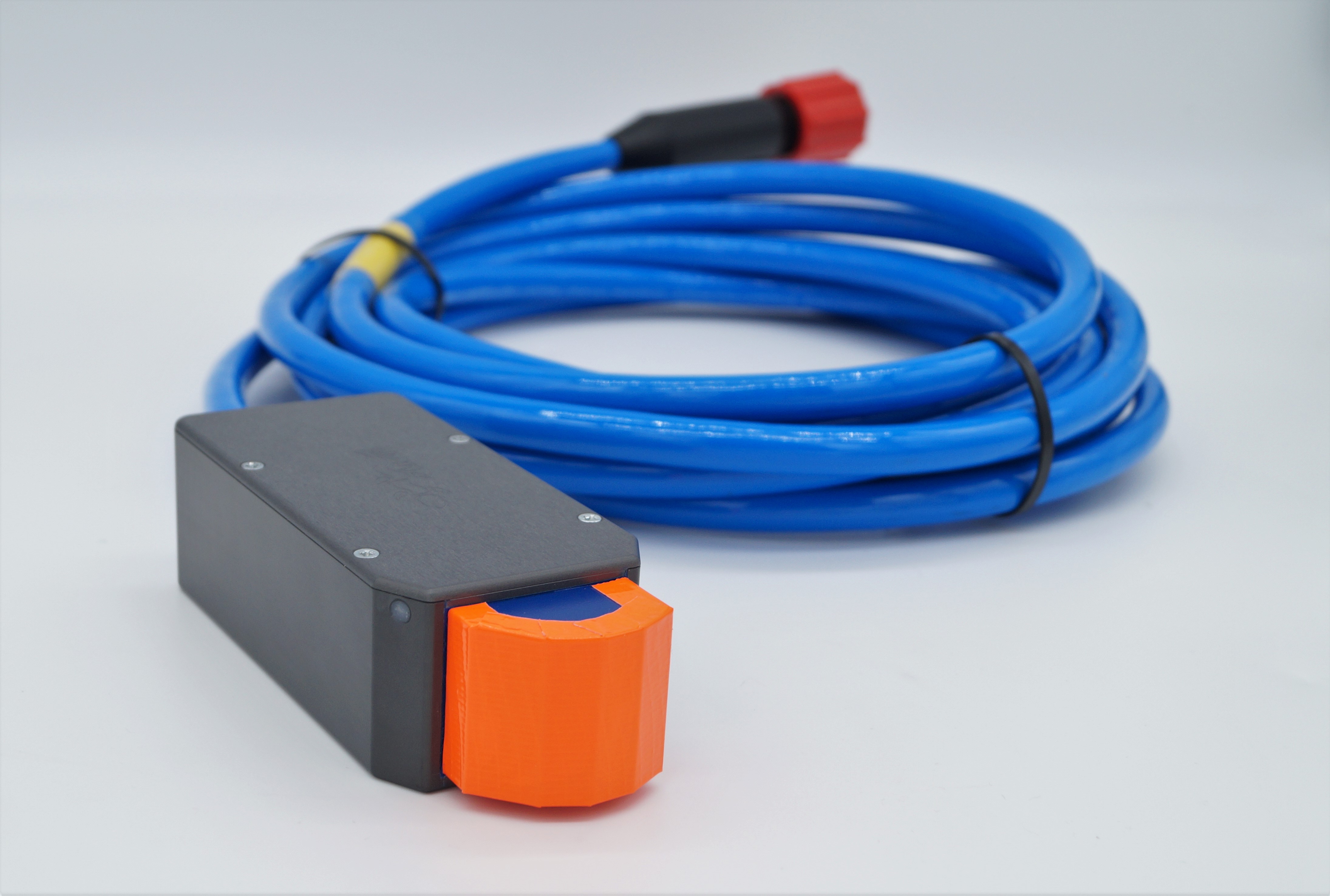

LP100S
Faceted probe for subsea inspection of geometric subsea structures and complex weld configurations.
LP600S
Subsea pencil probe for inspection of small difficult areas and tight access locations.

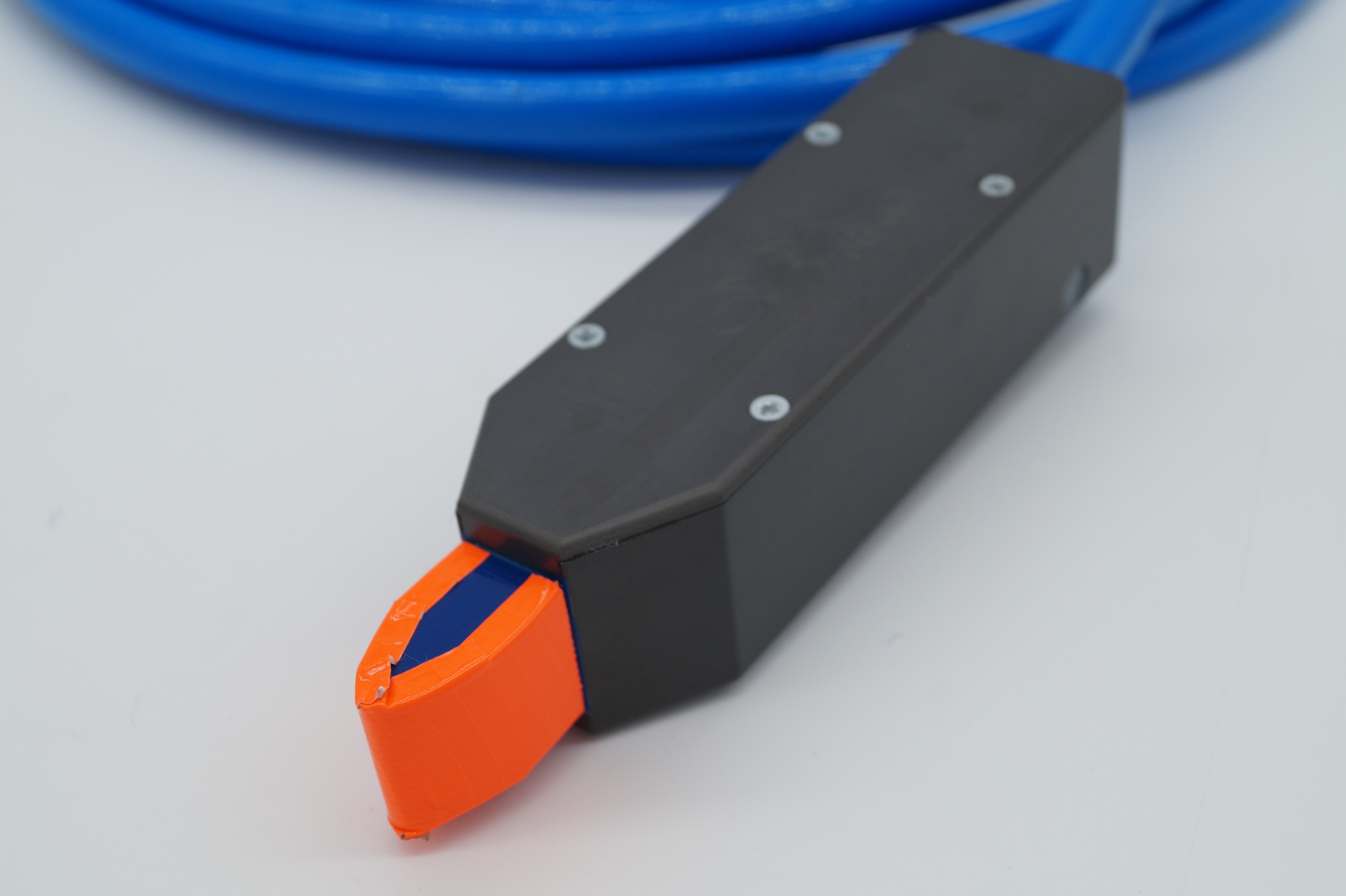

LP801S
Subsea tight access probe for demanding offshore platform inspection requirements.
Robotic Arrays

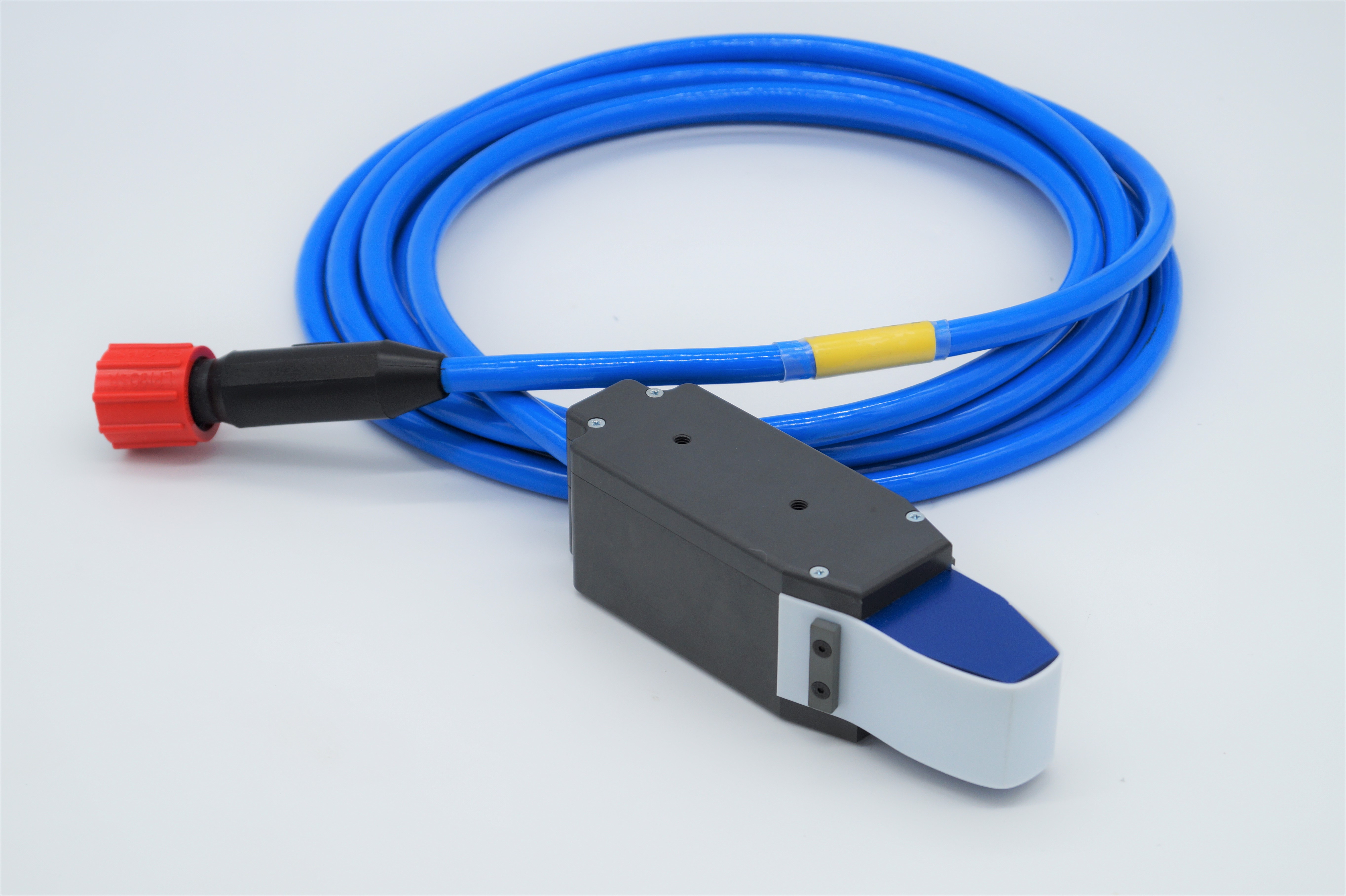

LP180SR
Subsea nodal weld eddy current probe for robotic inspection with right-angled (90°) version available. Features 6 array pairings with 8 mm lift-off and software-selectable interrogation.
The LP180SR is a subsea nodal weld eddy current probe for robotic inspection of medium to large ferritic welds, with a right-angled (90°) version available. Its array design inspects the HAZ, weld toe, and cap in a single pass and accommodates offshore nodal joints with up to 30° connection tolerance. Featuring 6 array pairings (6 Bx, 6 Bz) across two sensor faces, software-selectable interrogation minimizes handling and inspection time. Each active face provides 8 mm lift-off capability with independent lift-off indicators, enabling inspection through most coatings. A hard-wearing protective array, threaded mounts, and a galvanised aluminium housing make the LP180SR ideal for harsh subsea environments.

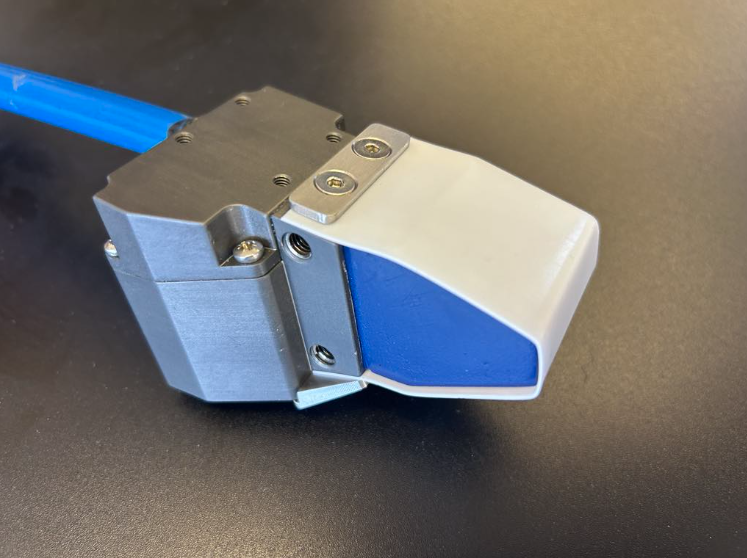

LP170SR
Subsea nodal weld eddy current probe for robotic inspection of medium to large ferritic welds. Features 7 array pairings with 8 mm lift-off and software-selectable interrogating faces.
The LP170SR is a subsea nodal weld eddy current probe designed for robotic inspection of medium to large ferritic welds. Its array configuration inspects the HAZ, weld toe, and cap in a single pass and is optimized for offshore nodal joints with up to 30° connection tolerance. Featuring 7 array pairings (7 Bx, 7 Bz) with software-selectable interrogating faces, it minimizes mechanical handling and inspection time. Each active face offers 8 mm lift-off capability with independent lift-off indicators, enabling inspection through most coatings. A hard-wearing protective array, threaded mounts, and galvanised aluminium housing make the LP170SR ideal for harsh subsea and offshore environments.
Technical Advantages & Benefits
Technical Advantages
- Non-contacting inspection through marine growth and surface coatings
- Real-time defect detection with length and depth sizing capability
- Dynamic Field Coupling feedback for probe deployment corrections
- Compatible with ROV manipulators and diver-held deployment methods
- Full data archival for post-inspection analysis and reporting
Operational Benefits
- Reduced cleaning requirements saving operational time and cost
- Suitable for both shallow water diving and deep water ROV operations
- Multi-frequency operation for ferrous and non-ferrous materials
- Rugged construction rated for demanding subsea environments
- Comprehensive electromagnetic toolbox in single package
"The LIZARD subsea system has transformed our underwater inspection capabilities. The ability to inspect through marine growth while maintaining accuracy has significantly reduced our operational costs and improved turnaround times."— Subsea Inspection Manager, Offshore Energy Company
Ready to Explore LIZARD Dive?
Contact us for subsea specifications, demonstration scheduling, or custom solution requirements.
